Taking Advantage of Gemini Managed Agents with Google Apps Script

GasTips / report
Google Apps Script / Google Workspace / Gemini / AI

Gists

Breaking the Limits of GAS with Direct Cloud-to-Cloud Streaming in Persistent Linux Sandboxes

Abstract

While Google Apps Script (GAS) is a powerful tool for Google Workspace automation, platform and computational constraints often limit its ability to handle advanced workloads. Gemini Managed Agents provide remote Linux sandboxes equipped with bash execution. This article introduces an architecture integrating GAS with a Linux sandbox to execute tasks beyond the capabilities of Apps Script alone. By streaming generated artifacts directly from within the Linux sandbox to Google Drive, this approach bypasses API payload limits, eliminates token overhead, and achieves high-throughput cloud automation.

Introduction

Recently, Martin Hawksey published an inspiring article on AppsScriptPulse exploring the potential of Gemini Managed Agents and the Google Workspace CLI within Google Workspace automation. Ref Gemini Managed Agents (part of the Gemini v1beta Interactions and Environments API) allow developers to provision and interact with remote Linux sandbox environments capable of autonomous code execution, shell commands, and package management. Ref

While Google Apps Script (GAS) is widely used for automating Google Workspace workflows, it operates as a lightweight, restricted serverless runtime without OS-level access, inherently preventing developers from executing various advanced computational workloads. Common platform bottlenecks include restricted low-level network and protocol controls, the absence of headless browser environments for dynamic web rendering, the inability to run native binaries for media transcoding or signal processing, the lack of modern compilers and build toolchains, and strict platform quotas on execution duration and payload sizes. The objective of this article is to introduce a generalized architecture that bridges GAS with a full-featured Linux sandbox provisioned by Gemini Managed Agents, demonstrating how developers can seamlessly offload otherwise impossible workloads to a dedicated cloud compute environment with high throughput and complete autonomy.

By integrating Google Apps Script with Gemini Managed Agents, GAS gains access to a dedicated Linux container (4 vCPU, 16 GB RAM) featuring Python 3.12, Node.js 22, and standard Linux package managers (apt, npm, pip). In this article, I present an end-to-end architecture and client library that enables GAS to orchestrate complex tasks inside a persistent Linux sandbox, eliminating local processing overhead by streaming generated artifacts directly to Google Drive via the ggsrun CLI tool.

Architectural Paradigm: Why Direct Cloud-to-Cloud Streaming?

When generating large files (such as high-resolution screenshots, audio waveforms, or bundled JavaScript) inside a Managed Agent sandbox and transferring them to Google Drive, returning raw binary data as Base64 strings through the Gemini API response to GAS introduces severe platform bottlenecks:

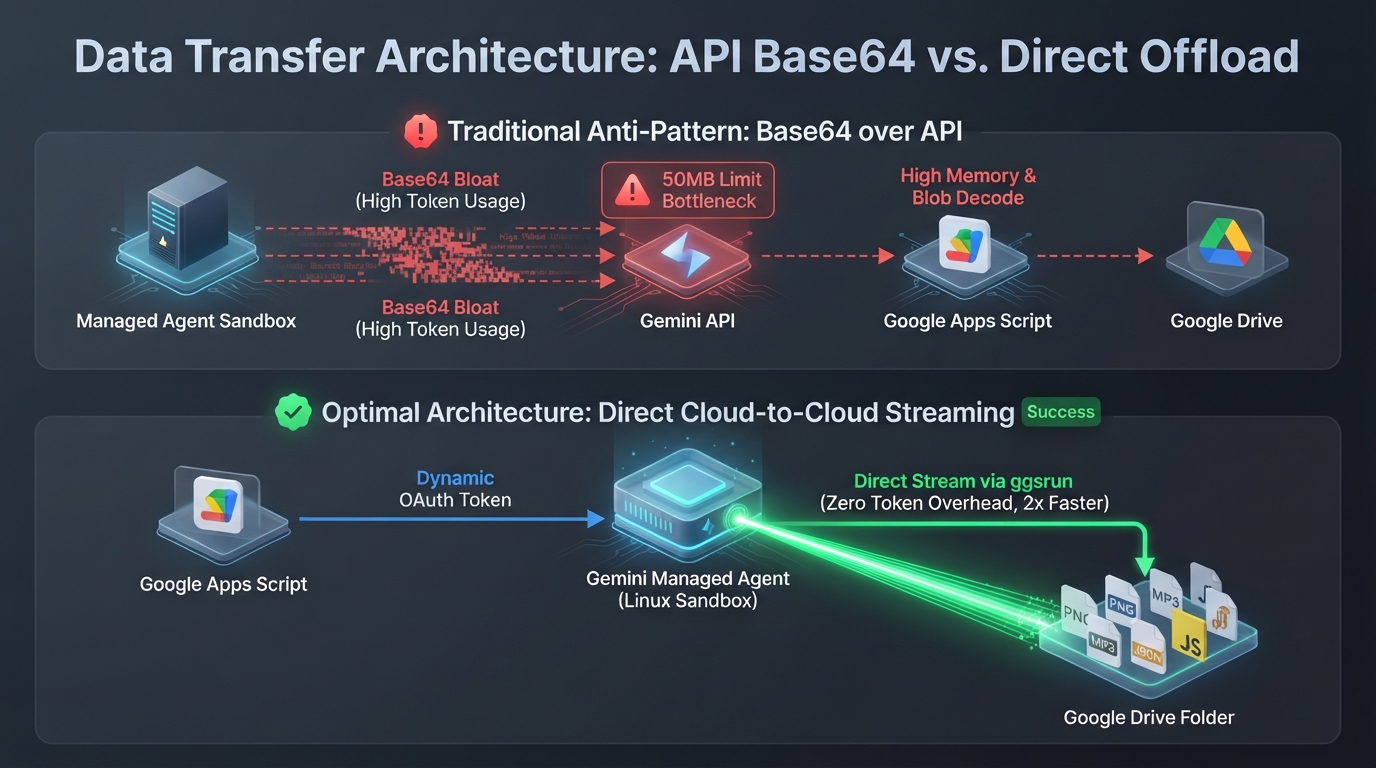

Figure 1: Architectural comparison between Base64 API transfer and direct cloud-to-cloud streaming via ggsrun

To eliminate these bottlenecks, the optimal approach is to execute the Go CLI tool ggsrun directly inside the Linux sandbox using a dynamically injected OAuth access token (ScriptApp.getOAuthToken()). This allows the sandbox to stream binary artifacts directly to Google Drive over Google Cloud’s internal backbone network at speeds exceeding 2 MB/s, completely bypassing Apps Script memory, API response size limits, and token quota exhaustion.

Drastic Input Token Savings via Bi-directional Streaming

The advantages of direct cloud-to-cloud streaming extend far beyond outbound artifact uploads. When bringing large external datasets (high-resolution images, audio, video files, multi-gigabyte CSV/JSON datasets, or machine learning models) into the sandbox for processing, direct inbound downloads provide an equally critical advantage.

Embedding large binary or structured datasets directly into API prompts as Base64 strings or serialized text rapidly consumes input token quotas, instantly hitting the 200,000 Tokens Per Minute (TPM) limit and triggering immediate 429 Quota Exceeded errors. In contrast, by streaming files directly from Google Drive into the sandbox via ggsrun, the prompt requires only a concise instruction (e.g., “Download target dataset from Drive and analyze it”). This architecture reduces input token consumption to virtually zero, completely preventing rate-limit exhaustion.

Process Cost Reduction via Shared Persistent Sandboxes

Furthermore, sharing a single persistent Linux sandbox (environmentId) across multiple clients—including Google Apps Script, local Node.js workstations, Python scripts, and CI/CD pipelines—dramatically lowers operational process costs.

By staging common master datasets, corpora, libraries, or pre-trained models inside the persistent sandbox filesystem (/workspace/), any client can immediately leverage those shared assets to generate content and execute complex processing. This eliminates the redundant overhead of uploading or re-initializing datasets on every execution turn, significantly reducing execution latency, network bandwidth, and cumulative API overhead.

Furthermore, provisioning a single persistent Linux sandbox and sharing its unique environmentId across multiple script executions, Google Apps Script projects, and local developer workstations eliminates redundant initialization overhead and allows multiple tasks to reuse shared working files and pre-installed packages seamlessly.

Workflow

The following diagram illustrates the complete end-to-end architecture where Google Apps Script and local Node.js workstations orchestrate a single persistent Linux sandbox using a shared environmentId, leveraging bi-directional streaming (Inbound download / Outbound upload) and shared master datasets for instant content generation.

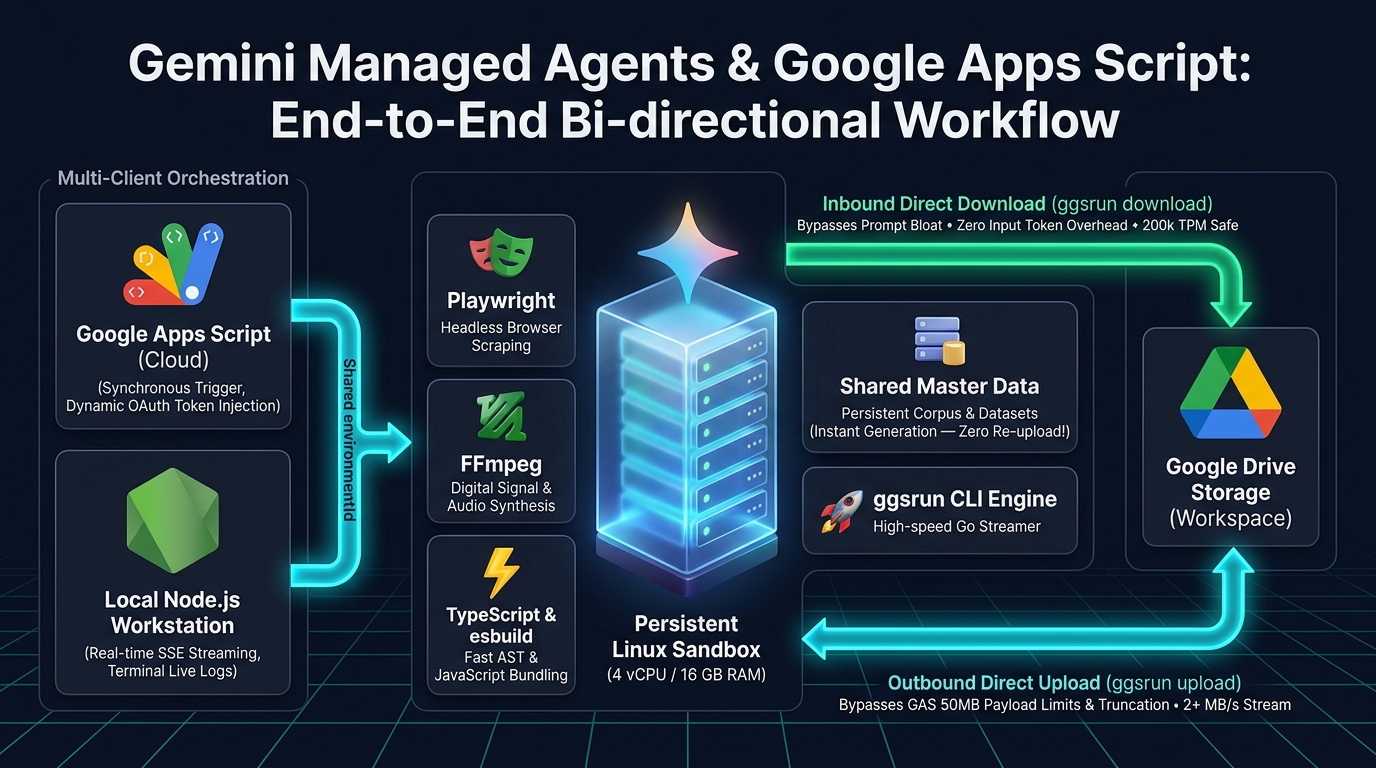

Figure 2: End-to-end bi-directional workflow and shared persistent sandbox architecture

Figure 2 Narrative: The diagram outlines the data integration and execution pipelines across cloud and local environments:

Repository

All source code, GAS classes, Node.js stream clients, test suites, and raw execution logs are available in the GitHub repository:

Usage

1. Obtain Gemini API Key

Generate an API key from Google AI Studio. Ref This API key authenticates requests to the Gemini v1beta Interactions and Environments APIs.

2. Create Google Apps Script Project

Create a Google Apps Script project using either of the following methods: Ref

3. Deploy Client Scripts & Set Script Properties

Copy the following files from the repository into your Apps Script editor:

Navigate to Project Settings > Script Properties and add your API key: Ref

4. Required Authorization Scopes

Ensure your project manifest (appsscript.json) includes the necessary OAuth scopes:

Testing on Cloud (Google Apps Script)

Execution logs for all tests can be verified in gas-src/execution-logs.md.

1. Provisioning a Unified Linux Sandbox

Executing provisionSharedSandbox() initializes a new remote Linux container, installs all required CLI utilities and dependencies, configures destination Google Drive paths, and saves the resulting environmentId in PropertiesService.

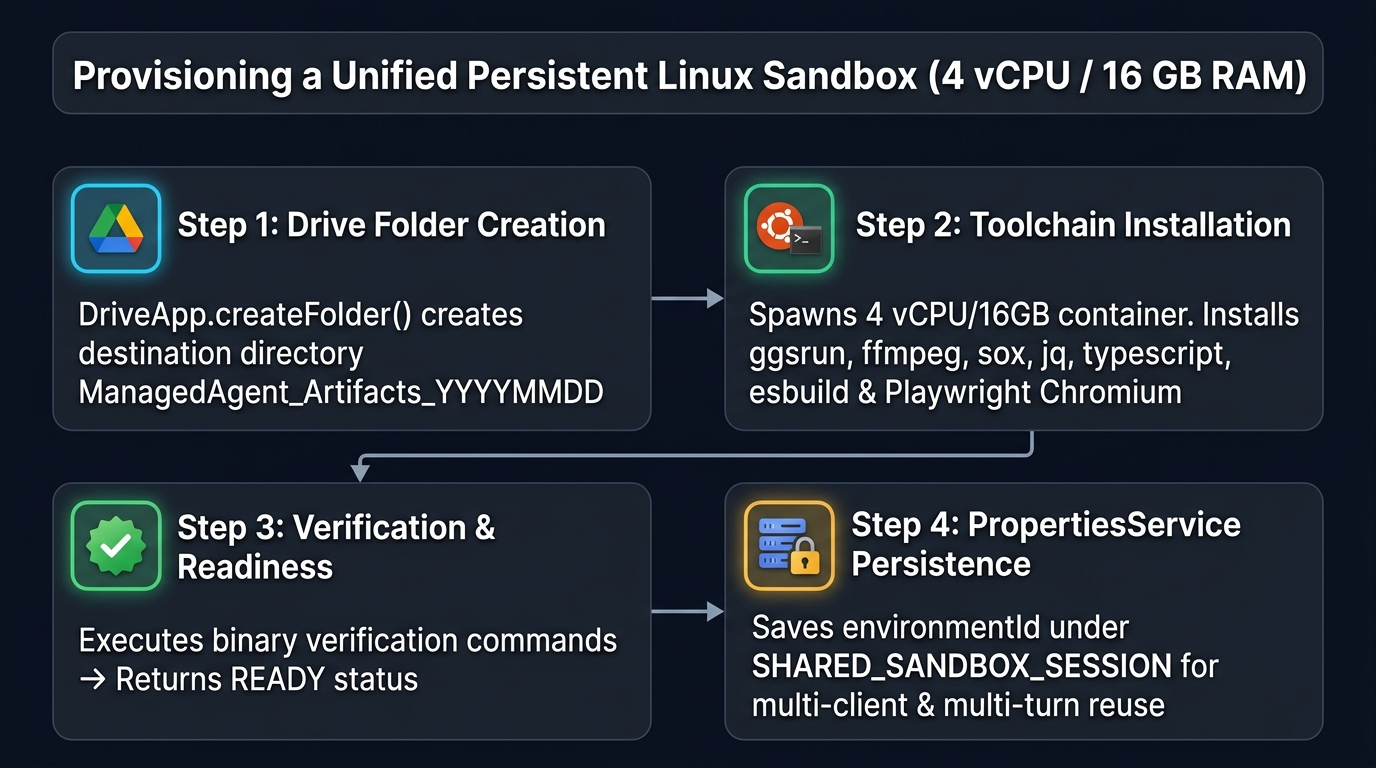

Figure 3: Technical infographic of provisioning a unified persistent Linux sandbox via Google Apps Script

Figure 3 Narrative: The infographic details the 4-step provisioning pipeline. In Step 1, Google Drive creates destination directory ManagedAgent_Artifacts_YYYYMMDD. In Step 2, a 4 vCPU / 16 GB RAM Linux container bootstraps ggsrun, ffmpeg, sox, jq, typescript, esbuild, and Playwright (Chromium). In Step 3, the sandbox validates installed binaries and emits a READY status. In Step 4, the unique environmentId is persisted under SHARED_SANDBOX_SESSION in PropertiesService for multi-test and cross-client reuse.

Running testListSandboxes() queries the Environments API to confirm active sandbox status and metadata.

2. Test 1: User-Agent Customization & POSIX Socket Verification (runTest1_UserAgentComparison)

This test demonstrates that while GAS UrlFetchApp automatically overwrites custom HTTP User-Agent headers with Google’s proxy identity string, the Managed Agent sandbox preserves arbitrary header configurations via raw POSIX sockets and native curl.

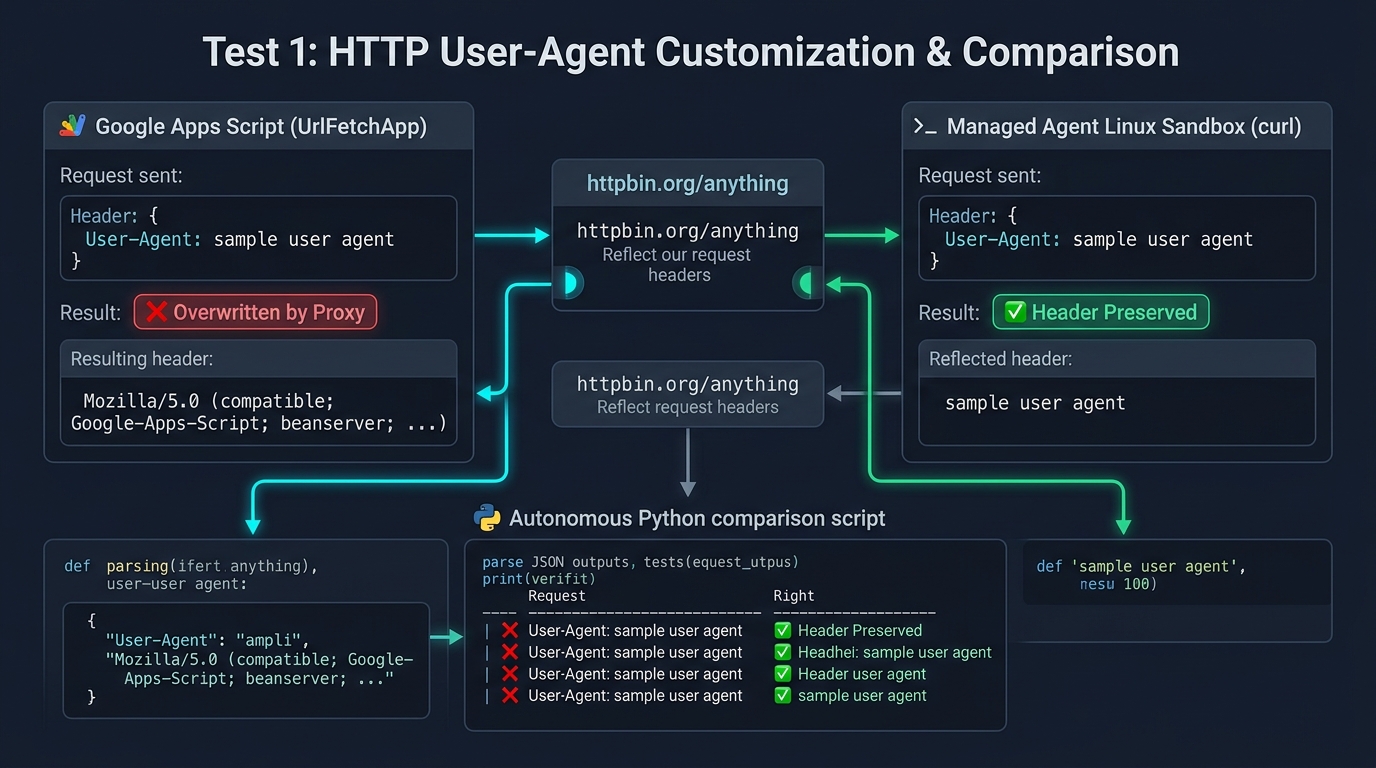

Figure 4: Technical infographic of HTTP User-Agent header behavior comparison between Google Apps Script and Linux Sandbox

Figure 4 Narrative: The diagram illustrates the request and response paths when sending a custom User-Agent: sample user agent header to httpbin.org/anything. In Google Apps Script (left), platform proxy policies enforce header substitution (❌). In contrast, the Linux sandbox using curl (right) retains the exact custom header string via raw POSIX socket transmission (✅). An autonomous inline Python script compares the reflected JSON payloads and outputs the verification matrix.

3. Test 2: ggsrun Deployment & Drive Direct Access Verification (runTest2_GgsrunDirectDeployment)

This test validates Google Drive authentication and direct access via ggsrun inside the sandbox by dynamically injecting a fresh OAuth access token (ScriptApp.getOAuthToken()) into the execution turn.

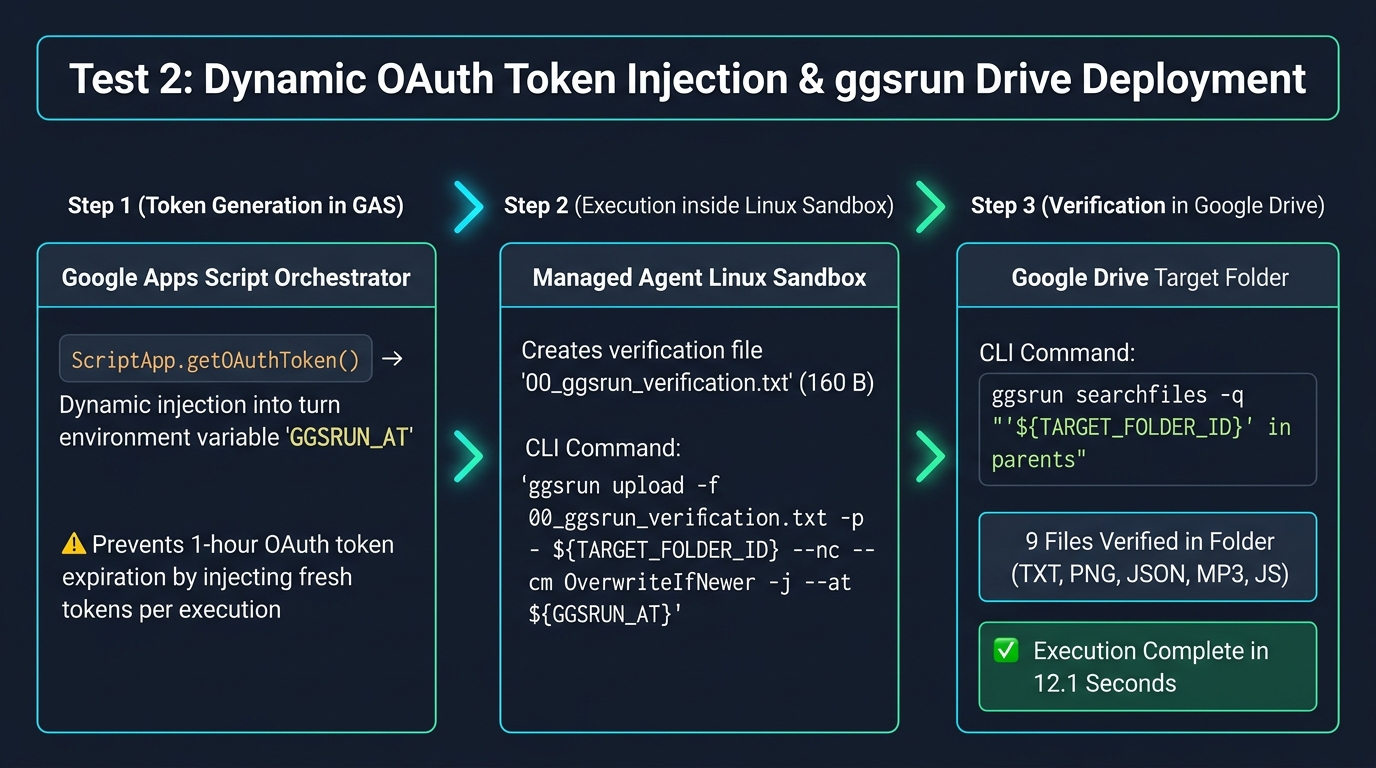

Figure 5: Technical infographic of dynamic OAuth token injection and ggsrun direct Google Drive deployment

Figure 5 Narrative: The infographic outlines the three execution steps of dynamic authentication and CLI offloading. In Step 1, GAS extracts ScriptApp.getOAuthToken() and dynamically injects it into the execution turn’s GGSRUN_AT environment variable (eliminating 1-hour token expiration risks). In Step 2, the sandbox generates a verification file and uploads it via ggsrun upload. In Step 3, ggsrun searchfiles executes a folder query, confirming all 9 artifacts in 12.1 seconds.

4. Test 3: Playwright Headless Scraping to Direct Drive Upload (runTest3_PlaywrightDirectUpload)

This test executes an automated headless Chromium browser session to scrape dynamic JavaScript content and capture multi-viewport screenshots.

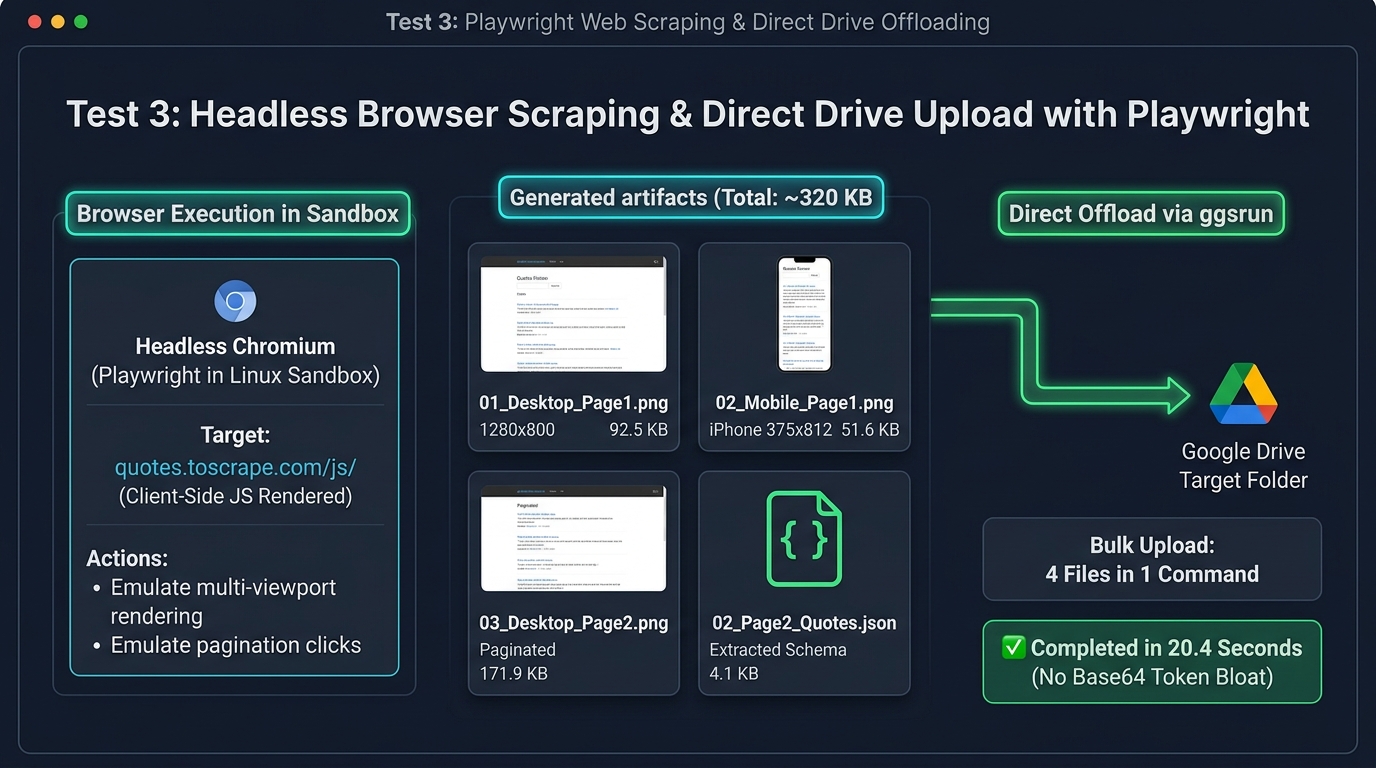

Figure 6: Technical infographic of headless browser scraping with Playwright and bulk direct upload to Google Drive

Figure 6 Narrative: The diagram depicts headless Chromium (Playwright) rendering dynamic JavaScript pages within the sandbox to capture multi-viewport screenshots (Desktop 1280x800: 92.5 KB, Mobile 375x812: 51.6 KB, Paginated Page 2: 171.9 KB) alongside structured quote JSON (4.1 KB), totaling ~320 KB across 4 artifacts. Bypassing Base64 API conversion, all files are streamed directly to Google Drive via ggsrun upload in a single command, completing in 20.4 seconds.

5. Test 4: FFmpeg Audio Synthesis & Transcoding to Direct Drive Upload (runTest4_FFmpegAudioDirectUpload)

This test executes native digital signal processing inside the sandbox using FFmpeg and SoX to synthesize multi-tone audio chords.

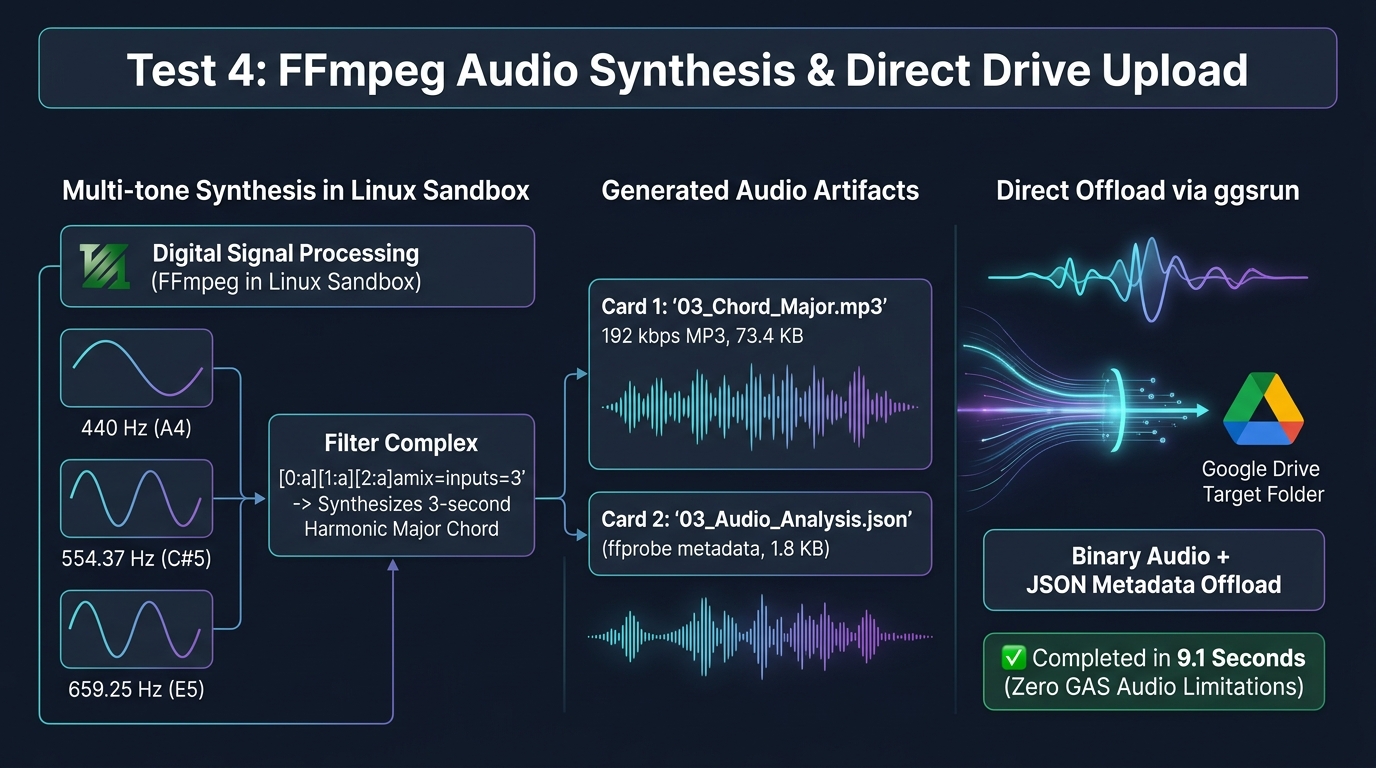

Figure 7: Technical infographic of multi-tone audio synthesis with FFmpeg and direct Google Drive upload

Figure 7 Narrative: The infographic illustrates the digital signal processing (DSP) pipeline inside the Linux sandbox. Three sine wave generators (440 Hz / A4, 554.37 Hz / C#5, 659.25 Hz / E5) are combined through the ffmpeg amix filter complex into a 3-second harmonic major chord MP3 (73.4 KB), while ffprobe extracts stream metadata into JSON (1.8 KB). Both binary audio and JSON analysis are streamed directly to Google Drive via ggsrun in 9.1 seconds.

6. Test 5: TypeScript AST Extraction & esbuild Bundling to Direct Drive Upload (runTest5_TypeScriptASTDirectUpload)

This test demonstrates modern JavaScript/TypeScript build tooling inside the sandbox environment.

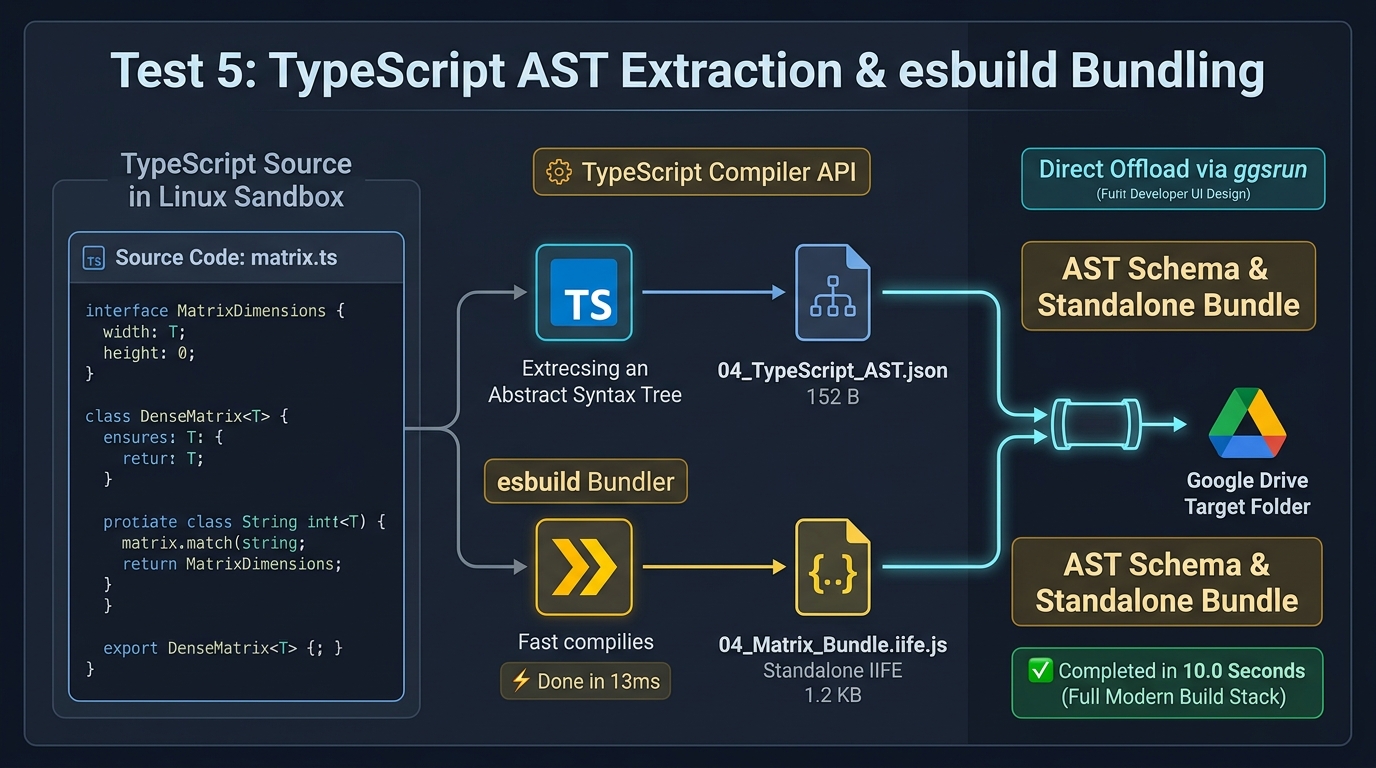

Figure 8: Technical infographic of TypeScript AST extraction and high-speed esbuild compilation with direct Drive upload

Figure 8 Narrative: The diagram outlines the dual build toolchains operating on TypeScript source code (matrix.ts). The first branch employs the official TypeScript Compiler API to parse the Abstract Syntax Tree (AST) and export interface schemas (04_TypeScript_AST.json: 152 B). The second branch leverages esbuild to compile a standalone IIFE bundle (04_Matrix_Bundle.iife.js: 1.2 KB) in just 13 milliseconds. Both deliverables are offloaded to Google Drive via ggsrun in 10.0 seconds.

7. Test 6: Performance Benchmark: Direct ggsrun Upload vs. Base64 via GAS (runTest6_DriveUploadPerformanceComparison)

This benchmark evaluates transferring a binary payload (10,000 bytes) from the sandbox to Google Drive across two distinct methods:

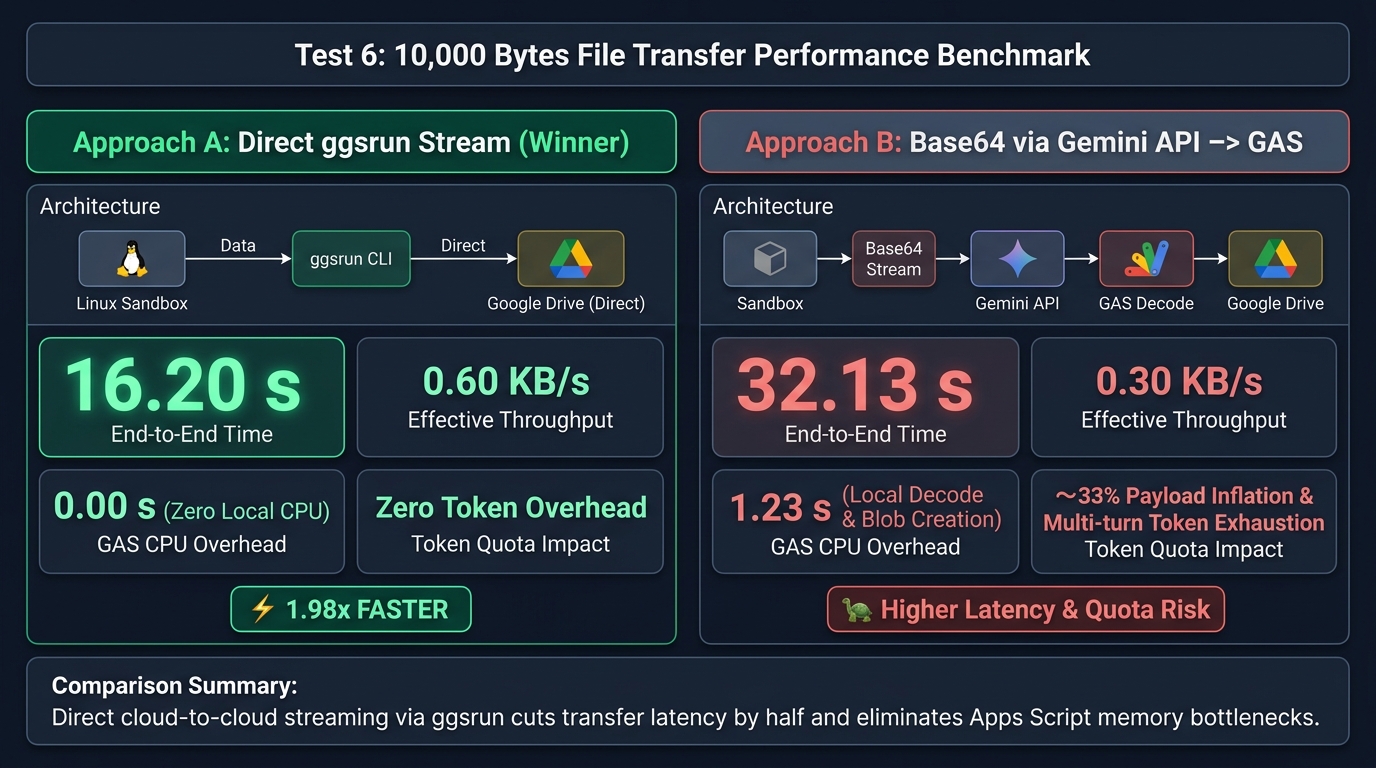

Figure 9: Performance benchmark comparison infographic: Direct ggsrun streaming vs. Base64 transfer via Gemini API

Figure 9 Narrative: The benchmark infographic compares Approach A (direct ggsrun streaming) against Approach B (Base64 transfer via API -> GAS decode). Approach A finished in 16.20 seconds (0.60 KB/s, zero GAS CPU usage), proving to be 1.98x faster than Approach B (32.13 seconds, 0.30 KB/s, 1.23 s GAS CPU). Approach A completely eliminates Base64 payload inflation (~33%) and prevents multi-turn conversational token exhaustion.

================================================================================
PERFORMANCE BENCHMARK REPORT: 10,000 BYTES FILE TRANSFER TO GOOGLE DRIVE
================================================================================
| Metric                       | Approach A: Direct ggsrun Upload | Approach B: Base64 via Gemini API -> GAS |
| :--------------------------- | :------------------------------- | :--------------------------------------- |
| Transfer Method              | Direct Sandbox-to-Drive (Go CLI) | Base64 Stream -> GAS -> Drive            |
| Drive File Name              | benchmark_10kb_ggsrun.bin        | benchmark_10kb_gas.bin                   |
| Verified File Size           | 10,000 bytes (9.77 KB)           | 10,000 bytes (9.77 KB)                   |
| API Turns Required           | 1 Turn (Direct Offload)          | 1 Turn (Base64 Retrieval)                |
| Local GAS Processing Time    | 0.00 s (Zero CPU overhead)       | 1.23 s (Base64 Decode & Blob Creation)   |
| Total End-to-End Duration    | 16.20 s                          | 32.13 s                                  |
| Effective Throughput         | 0.60 KB/s                        | 0.30 KB/s                                |
| Performance Multiplier       | 1.98x FASTER                     | Baseline (Higher Latency & Token Usage)  |
================================================================================

Summary of Benchmark Findings: Direct streaming via ggsrun was 1.98x faster, eliminated 100% of Apps Script CPU/memory decoding overhead, and prevented conversational token quota consumption. For multi-megabyte payloads, this direct streaming architecture is essential to prevent 429 Quota Exceeded errors.

Testing on Local Workstations (Node.js Stream Runner)

To demonstrate cross-platform interoperability enabling developers to control the exact same persistent Linux sandbox from both Google Apps Script and local workstations, a high-performance Node.js client powered by Server-Sent Events (SSE) streaming was implemented. Ref

1. Purpose and Advantages of the Local Stream Runner

While Google Apps Script operates under a synchronous blocking execution model where agent events are aggregated at the end of the HTTP request, the local Node.js runner (built with the @google/genai SDK) provides significant developer benefits:

2. Local Setup and Test Execution

Local test suites can be executed through the following straightforward steps:

Full raw execution transcripts with live streaming outputs can be reviewed in local-node.js-src/execution-logs.md, confirming 100% functional parity with Google Apps Script executions.

Appendix: Gemini Managed Agents API Usage Patterns

The following patterns summarize common interaction models when working with the Gemini v1beta Interactions and Environments API:

Base Endpoint

POST https://generativelanguage.googleapis.com/v1beta/interactions?key=${API_KEY}
Content-Type: application/json

Scenario 1: Sharing a Single Persistent Sandbox Across Multiple Clients

Provision a remote environment once by setting environment.type to "remote". Save the returned environment_id and pass it as a string in subsequent requests across any client (GAS, Node.js, Python, or CI/CD).

{
  "agent": "antigravity-preview-05-2026",
  "input": "Run task in shared container...",
  "environment": "environments/env-12345"
}

Scenario 2: Using Isolated Sandboxes per Execution

Set environment.type to "remote" on every call when tasks require a completely fresh, isolated Linux environment.

{
  "agent": "antigravity-preview-05-2026",
  "input": "Execute client-specific isolated task...",
  "environment": {
    "type": "remote"
  }
}

Scenario 3: Preserving Multi-turn Conversational Context

Include previous_interaction_id when the agent must retain knowledge of prior reasoning, variables, or command outputs.

{
  "agent": "antigravity-preview-05-2026",
  "input": "Based on the previous output, proceed to step 2...",
  "environment": "environments/env-12345",
  "previous_interaction_id": "interaction-prev-67890"
}

Scenario 4: Reusing Sandbox with Fresh Context (freshInteraction)

Specify the existing environment_id and omit previous_interaction_id. This preserves all files and installed tools on the Linux container while resetting conversation history to zero tokens, preventing TPM rate-limit exhaustion.

{
  "agent": "antigravity-preview-05-2026",
  "input": "Execute a completely new task in the existing sandbox...",
  "environment": "environments/env-12345"
}

Summary Matrix

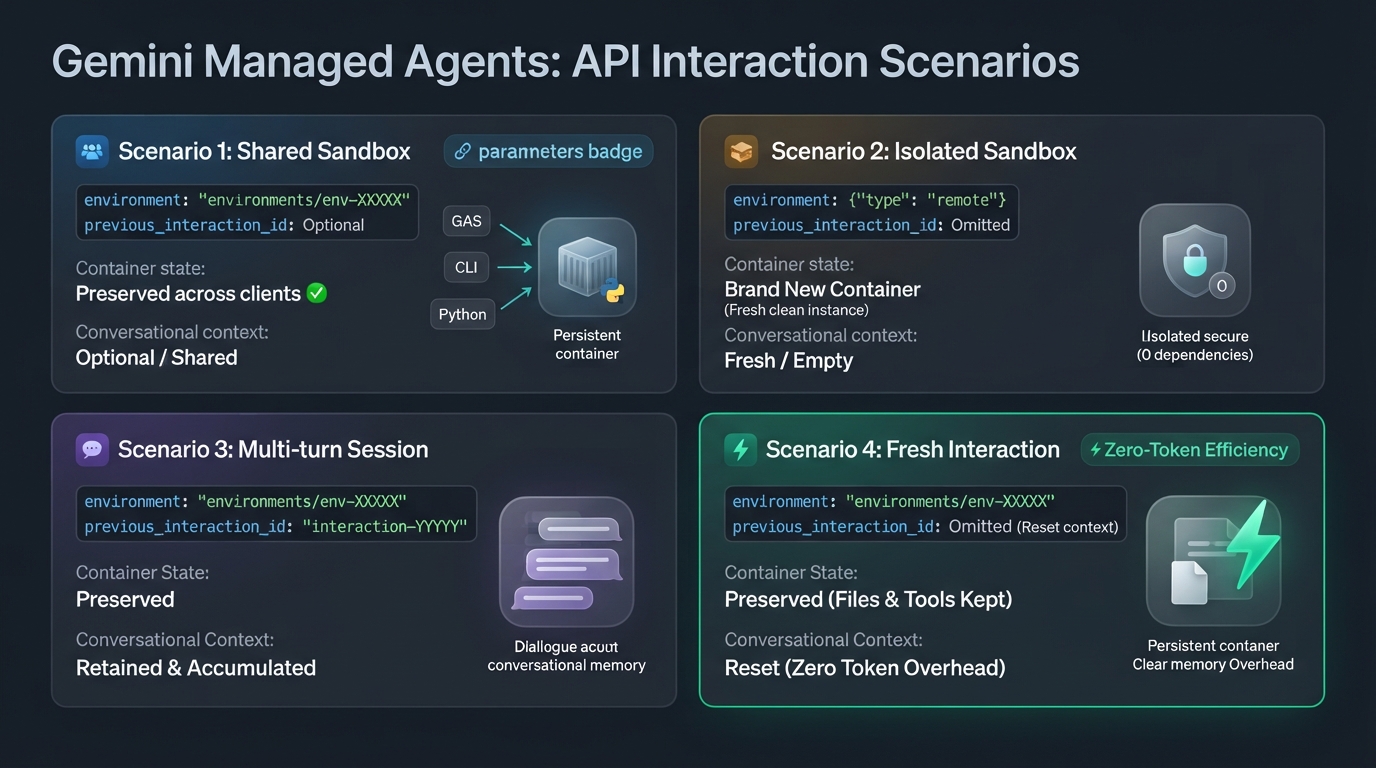

Figure 10: Summary matrix of Gemini Managed Agents API interaction scenarios and context management models

Summary

This article introduced an enterprise-grade architecture integrating Google Apps Script with Gemini Managed Agents (Linux sandboxes) to fundamentally transcend traditional serverless runtime constraints. By combining persistent remote sandboxes with bi-directional direct cloud-to-cloud streaming via ggsrun, developers can achieve advanced processing capabilities previously impossible in Apps Script while avoiding API payload limitations and conversational token rate quotas.
